VETUS waste water tank system 88 litre, incl. 24 Volt pump & sensor

VETUS spildevandstank 88 L inkl. 24 Volt pumpe & sensor

6.407,00 kr


Udsolgt, kontakt kundeservice

Komplet tank type WWS - Ready to go!

Disse tanke er lavet af syntetisk materiale, der er uigennemtrængeligt for lugt og gennemsigtigt, så tankniveauet kan ses udefra. Disse komplette tanke kommer med en VETUS spildevandspumpe, inspektionsdæksel, ultralydsniveausensor, studse og 2 fastgørelsesstropper.

Alle forbindelser går gennem toppen af tanken.

Type WWS er egnet til opbevaring af sort og gråt spildevand og er specielt designet til at spare plads og installationstid.

Tekniske data:

• 24 Volt

• Tankene er i overensstemmelse med ISO 8099 standard

• Tankkapacitet 88 liter

Tilslutning:

• Sugerør med Ø 38 mm vinkelstuds for tømning fra land

• Udluftningstilslutning Ø 19 mm

• Pumpeforbindelse Ø 38 mm

• Hul til tilløbsstuds type RT..B

Reference
VWWS8824B
Antal
udsolgt, kommer igen

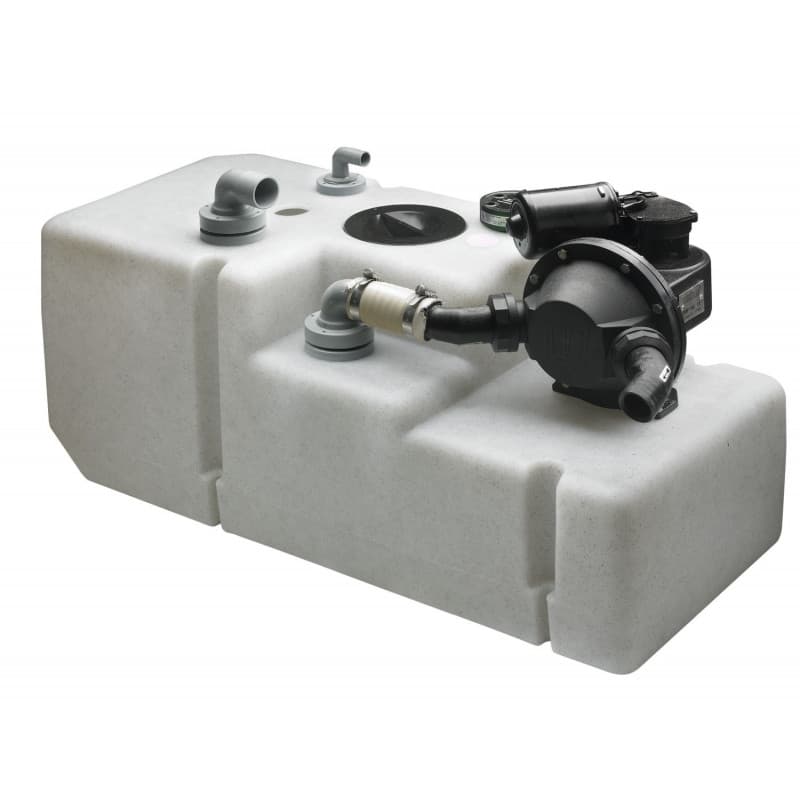

The waste water tank system is designed to save on space and installation time. The tank has a capacity of 88 litres and is made of odour impermeable polythene. It is suitable for storing “black” and “grey” waste water and is provided with ISO 8099identification.
The “ready to go” system comes complete with a VETUS waste water pump type EMP (24 Volt), an inspection cover, a tank gauge sender (the 24 Volt level gauge must be ordered separately), a plastic suction pipe with Ø 38 mm angled hose connection fordischarge from ashore, two securing straps and one Ø 19 mm connection for the breather.
All input and discharge connections are accessible at the top of the tank. One hole has already been provided to connect the inlet fitting. Angled connectors for the input of waste water must be ordered separately.

VWWS8824B
Ean13
8717372331374
