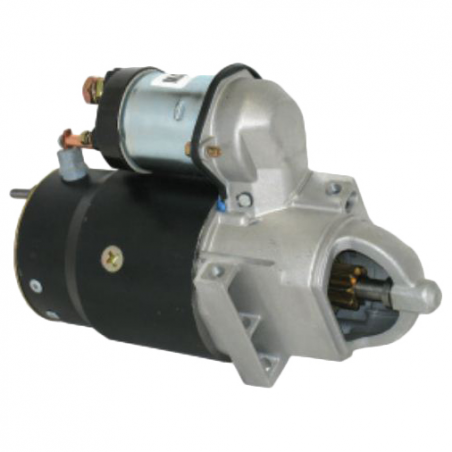

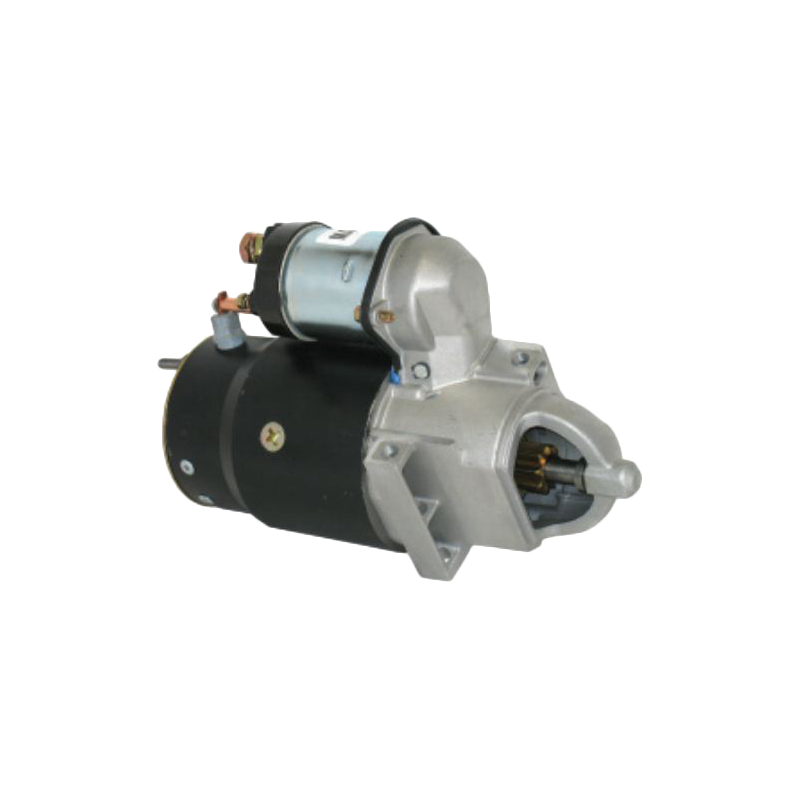

Delco starter til Mercury, Marine Power og Volvo 12 Volt 1,4 KW

1.080,00 kr


Permanent Magnet Gear
Reduction Starter for
Mercruiser, Marine
Power, and Volvo
Replaces Mercury:
50-806964A3
Plated Mounting Bolts
Included with Starter.
CW Rotation

Reference
2-1691-DR-2
Antal
Levering 1 - 3 dage

Specifications

  • MFR:DELCO
  • Mfr Series:PG260L
  • DESIGN:PMGR
  • FEATURE 1:100% New
  • FEATURE 2:OE performance torque & output
  • FEATURE 3:Field case assys. are 100% tested on a computerized gaussmeter to measure magnet strength & position
  • FEATURE 4:Zinc plated field case, solenoid, C.E. cover & hardware
  • FEATURE 5:Armatures are precision balanced & feature banded hairpins
  • FEATURE 6:Commutators are stake-welded & polished for longer brush life
  • FEATURE 7:Starter, drive & solenoid are endurance tested
  • KW:1.6
  • NOTE 1:Also replaces Delco PG260M Starters: 9000819, 821 (Lester 6560, 6562) however must use 84-1507 mtg. bolt (10mm x 3/8-16 x 4-5/16 L) (Included)
  • NOTE 2:SAE J1171 Marine Certified
  • ROTATION:CW
  • SPECS FOR:Delco PG260L PMGR
  • SPECS:1.6kW/12 Volt, CW, 11-Tooth Pinion
  • TEETH:11
  • VOLTAGE:12

Replaces

  • Delco 10465042, 9000762, 9000768, 9000789, 9000819, 9000851, 9000885, 9000886, Hyster 1469604, Letrika (Iskra) Tech. AZE2128, Letrika Old IS 9313, IS 9314, Mercury Marine 50-812428A3, 50-812604A2, 50-822330A2, 50-864340A2, Outboard Marine Corp (OMC) 3855177, Prestolite 35261180

USED ON

  • Caterpillar Ag. & Ind. (1998-2007) ** Clark (1997-2003) ** Daewoo (1998-2006) ** Hyster (1999-2006) ** Mercruiser (1987-2001) ** OMC (1986-1996) ** Pleasurecraft (2001-2004) ** Volvo Penta (1989-2007)

LESTER NUMBERS

  • 6409, 6560, 6562, 6766
2-1691-DR-2
Ean13
5705666142303
